| Tên thương hiệu: | WINLEY |
| Số mẫu: | D-10/12.47 |
| MOQ: | 1Unit |
| giá bán: | $1000-$10000 |
| Chi tiết bao bì: | Vỏ ván ép |
| Điều khoản thanh toán: | T/t |

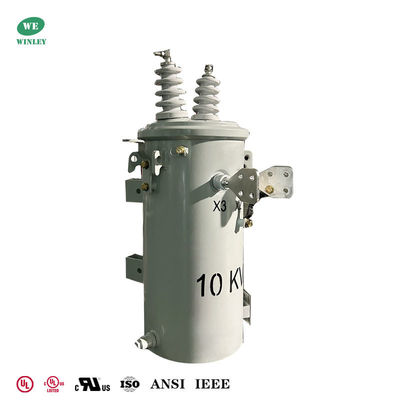

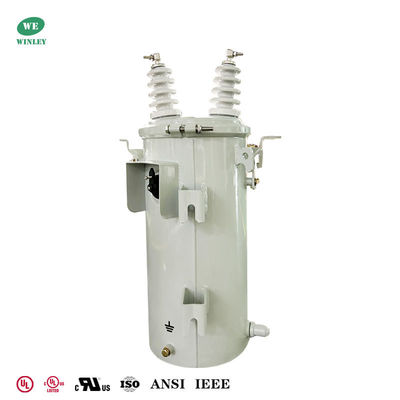

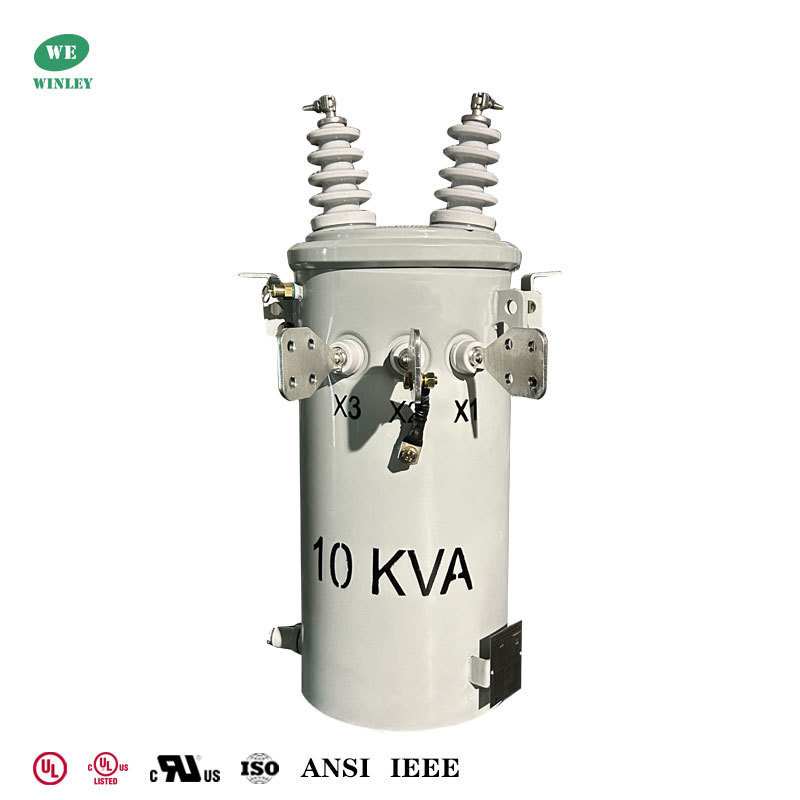

Winley's 10 kVA Pole-Mount Distribution Transformer, engineered for reliable single-phase service on overhead distribution systems. This compact, ANSI-compliant unit is designed for durable outdoor use and optimized for efficient, long-term performance.

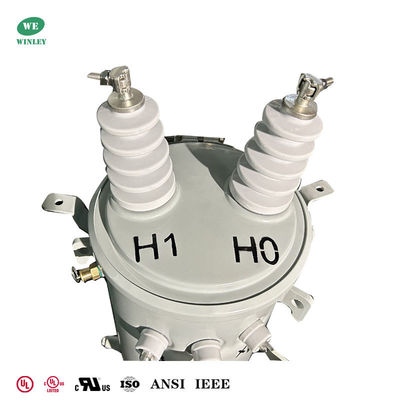

This transformer combines proven design with high efficiency and field-friendly features including externally accessible tap changer, robust bushing insulation, and flexible terminal options, making it an excellent choice for residential and light commercial distribution on overhead lines. Its UL/cUL certification ensures it meets stringent safety and performance standards for North American utilities and contractors.
| Rated Capacity (kVA) | High Voltage (v) | Low Voltage (v) | Connection Symbol | Standard | Short-circuit impedance (%) | Efficiency |
|---|---|---|---|---|---|---|
| 10 | 4160 7200 12000 12470 13200 13800 19920 24940 34500 |
110 220 230 400 480 |
II0,II6 | IEEE/ANSI/DOE | 1.8-4% | 98.7 |
| 15 | 98.82 | |||||
| 25 | 98.95 | |||||
| 37.5 | 99.05 | |||||
| 50 | 99.11 | |||||
| 75 | 99.19 | |||||
| 100 | 99.25 | |||||
| 167 | 99.33 | |||||
| 250 | 99.39 | |||||
| 333 | 99.43 |
|
