| Tên thương hiệu: | WINLEY |
| Số mẫu: | SCB10-2500/22 |
| MOQ: | 1Đơn vị |
| giá bán: | $5000-$100000 |
| Chi tiết bao bì: | hộp gỗ dán |
| Điều khoản thanh toán: | T/T |

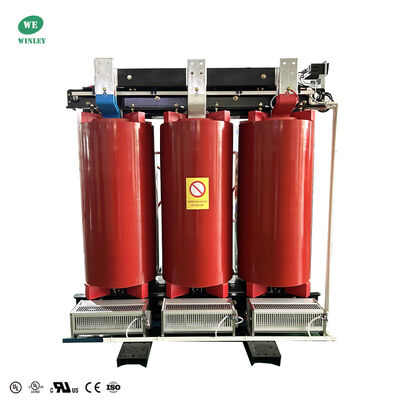

2500kva Cast Coil Transformer 22kv To 433v Dry Type Epoxy Resin Electrical Power Transformers AS60076 Standard
Cast coil transformers are the ideal solution for voltage distribution in harsh environments with airborne dust or high humidity. The windings are vacuum-cast into a solid block of epoxy resin, providing the highest level of protection for the windings.

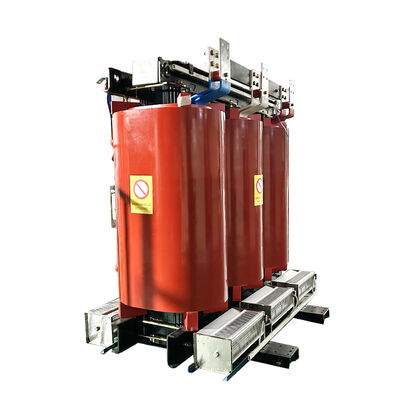

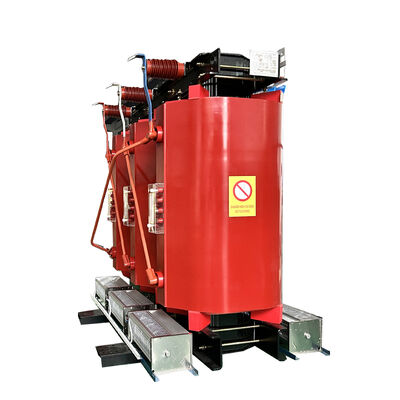

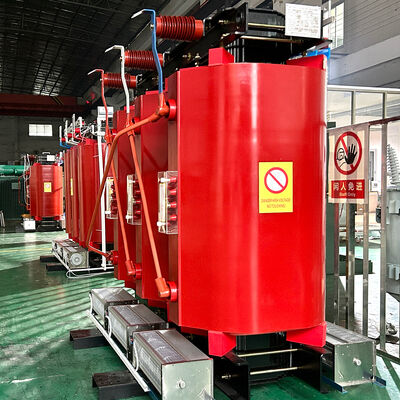

Product Photos
winley electric’s cast coil transformers are designed, built, and tested in accordance with the highest industry standards including NEMA, ANSI, DOE, AS60076,and IEEE as applicable.
Main data
| No. | Particulars | Unit | Specification | Remark | |
| 1 | Type | ~ | cast resin, dry type | ||
| 2 | Rated capacity | kVA | 2500 | ||
| 3 | No. of Phase | ~ | 3 | ||
| 4 | Primary voltage | V | 22000 | Delta | |
| 5 | Secondary voltage | V | 433 | Wye | |
| 6 | Tapping type | ~ | off-circuit tapping | ||
| 7 | Tapping type | % | ±2*2.5% | ||
| 8 | Cooling method | ~ | AN/AF | ||
| 9 | Rated frequency | Hz | 50 | ||
| 10 | Vector group | ~ | Dy1 | ||
| 11 | Insulation class | ~ | F | ||
| 12 | Temperature rise | K | 100 | ||
| 13 | Standard | ~ | AS60076 | ||
Technical drawings
Features
Cast Coil Transformer Benefits
Production process
|
|
